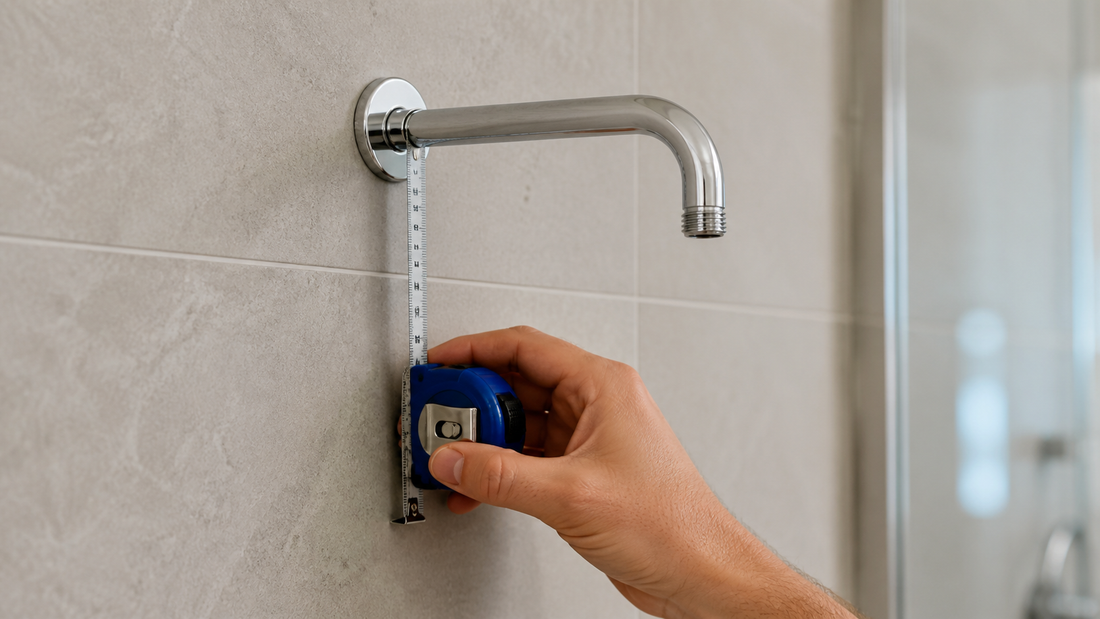

Tape measure checking clearance below an exposed wall-mounted shower arm

Will a Handheld Shower Head Fit My Shower? A Compatibility Checklist

A handheld shower head will often fit a shower with a compatible wall-mounted shower arm, but fit should never be assumed. Before buying, identify the current setup, compare the kit's connection specifications with the exposed fitting, inspect the fitting's condition, and check the space available for the bracket, head, and hose.

This checklist covers the most common retrofit questions. If you are still deciding whether a movable head suits your routine, begin by comparing fit, reach, spray patterns, maintenance, and included parts.

Key Takeaways

  • A conventional wall shower arm with one removable fixed head is often the simplest starting point for a handheld retrofit.
  • "Threads on" and "fully compatible" are not the same. Connection specifications, washers, clearance, condition, and installation instructions all matter.
  • Keeping a fixed head usually requires a compatible diverter or a complete fixed-and-handheld combination kit.
  • Ceiling outlets, tub-spout-only layouts, shower panels, and concealed multi-outlet systems are not straightforward shower-arm replacements.
  • Mechanical fit does not prove household pressure, spray performance, leak-free operation, or code compliance.

In this guide

Start by identifying the shower you have

The visible plumbing tells you which type of handheld kit to consider. Do not compare spray modes or hose length until you know where the new system would connect.

Current setup Likely path What to confirm
Wall shower arm with one fixed head Often a candidate for a shower-arm-mounted handheld kit Connection specifications, thread condition, bracket clearance, and included sealing parts
Fixed head you want to keep Diverter or a complete fixed-and-handheld combination kit Outlet arrangement, diverter operation, total clearance, and instructions for simultaneous use
Existing handheld on a bracket Replacement may be possible, but parts should not be mixed by appearance alone Hose-end specifications, washers, holder fit, and connection details
Slide bar with a separate wall outlet Usually a model-specific installation Outlet type, mounting points, drilling, wall support, and waterproofing
Ceiling rain shower Usually not a simple wall-bracket swap Outlet orientation, hose routing, support, and a purpose-built conversion plan
Tub spout only Requires a system designed for that water outlet Tub-spout type, diverter arrangement, and product-specific instructions
Shower panel or concealed multi-outlet system Treat as a plumbing system, not a single-head replacement Valve design, outlet layout, manufacturer documentation, and professional access

If the choice is mainly between keeping a fixed format and adding movable reach, our handheld vs. fixed shower head comparison explains the practical tradeoffs.

Use this seven-point compatibility checklist

1. Confirm the configuration

Check whether the kit is designed to mount on an exposed shower arm, a separate wall outlet, a slide bar, a tub spout, or another connection. Similar-looking handheld sets can require different hardware.

For the common wall-mounted arrangement, the existing fixed head is removed and a compatible bracket or connector is installed on the shower arm. The hose then connects between that fitting and the handheld head. That description does not apply automatically to every bathroom.

2. Compare both connection specifications

Read the new kit's specifications and compare them with the fitting you actually have. Confirm the shower-arm connection and both hose-end descriptions. Do not rely on "universal" wording or assume that every U.S. installation uses the same thread.

A connection that starts threading can still be wrong. If it binds, sits crooked, or needs force after the first turns, stop. Cross-threading can damage the fitting and prevent the washer or sealing surface from working as intended.

3. Inspect the existing shower arm

The exposed pipe should feel secure and have clean, usable threads. Heavy corrosion, cracks, severe mineral buildup, or movement where the arm enters the wall changes the job from a routine fixture swap into a possible plumbing repair.

Do not try to solve a loose shower arm by tightening a new bracket harder. Water leaking behind the wall can cause damage that is not immediately visible.

4. Measure bracket and head clearance

Measure the open space around the shower arm. The new bracket may need room to rotate during installation, and the handheld head must be able to sit in its holder without hitting the wall, ceiling, shelf, grab bar, or glass enclosure.

Also check the resting spray angle. A part can physically attach and still point the head too high, too low, or toward the shower opening.

5. Check hose routing, ends, and washers

The hose should hang in a relaxed curve without crossing a sharp edge, pulling against a connection, or resting where it creates a trip or snag hazard. Measure from the intended hose outlet to the farthest place the spray needs to reach, then allow slack for comfortable movement.

Check which washers or gaskets belong inside the hose nuts. Thread-seal tape and washers serve different types of joints, so follow the model-specific instructions instead of putting tape on every visible thread.

6. Decide whether you need a diverter

Replacing one fixed head with one handheld set is different from keeping both. If you want a fixed head and handheld head on the same supply, use a compatible diverter or a complete combination system designed for that arrangement.

Confirm how water is directed between outlets and whether the instructions allow both to run together. A fitting that provides two outlets does not establish how the available flow will feel when it is divided.

7. Define the installation scope

A shower-arm-mounted bracket may be a straightforward threaded replacement. A slide bar or separate wall outlet can require drilling, anchors, wall support, waterproofing, or plumbing behind the finished surface.

Before starting, compare the box contents with the installation diagram. Keep the required washers, connector, and sealing material together, and follow the step-by-step handheld shower head installation guide only after confirming that its shower-arm-mounted configuration matches yours.

Which showers are not simple screw-on replacements?

A ceiling rain shower, tub-spout-only setup, shower panel, concealed multi-outlet valve, or slide bar supplied by a separate wall outlet should not be treated as a direct replacement for one ordinary wall-mounted head. These layouts may need different hardware, a model-specific adapter, permanent mounting, or plumbing access.

The same caution applies to altered systems with stacked adapters or an unknown diverter. Photograph the complete setup, including where the pipe enters the wall and every visible connection, before removing anything. Those photos make it easier to compare specifications or ask a plumber the right question.

Does fit tell you anything about pressure or flow?

No. Mechanical fit, water volume, household pressure, and spray feel are separate questions. A compatible fitting only means the parts can be assembled in the intended configuration.

Under the federal showerhead water-use standard, showerheads sold in the United States cannot exceed 2.5 gallons per minute at the stated test condition. That maximum is not evidence that a product raises household pressure, works the same at every home, or fits a particular connection.

Nozzle design and spray pattern can change how water feels, while low supply pressure, a partly closed valve, a kinked hose, debris, or an incorrectly seated washer can affect performance after installation. Diagnose those issues separately from thread compatibility.

What should renters check before changing a shower head?

Renters should check the lease, building rules, and local requirements before altering a fixture. Keep the original shower head and all of its parts so a reversible swap can be restored at move-out.

Get written permission before drilling tile, adding permanent wall hardware, changing concealed plumbing, or making another non-reversible alteration. If the existing arm is loose, corroded, or leaking, report the condition instead of covering it with a new fitting.

When should you call a plumber?

Stop the installation and request professional help when:

  • The shower arm moves where it enters the wall.
  • Threads are cracked, heavily corroded, flattened, or cross-threaded.
  • Water appears at the wall opening or behind the finished surface.
  • The job requires a new wall outlet, concealed diverter, valve change, or pipe modification.
  • You cannot identify the existing connection or safely remove old adapters.
  • A correctly assembled joint still leaks after the washer, alignment, and model-specific instructions have been checked.

A fit-conscious option: LiberaQuar S-1

The LiberaQuar S-1 is designed for standard U.S. shower connections, but customers should still confirm their existing fitting before purchase. The complete set includes the handheld shower head, a 59-inch hose, an adjustable bracket and connector, PTFE thread-seal tape, one pre-installed cartridge, and two replacement cartridges.

Use the supplied instructions to identify where the washers and thread-seal tape belong. The set is not presented as a universal solution for altered, damaged, concealed, ceiling-mounted, or otherwise nonstandard plumbing. If your shower matches the intended configuration, review the complete S-1 set and its included parts.

Frequently Asked Questions

Will a handheld shower head fit my existing shower arm?

It often will when the kit is designed for a wall-mounted shower arm and its connection specifications match the exposed fitting. Confirm the thread description, condition, bracket clearance, hose ends, washers, and installation instructions before buying.

Are handheld shower heads universal fit?

No handheld shower head should be assumed to fit every shower. Older plumbing, imported fixtures, damaged threads, custom systems, ceiling outlets, tub spouts, and concealed multi-outlet systems can require different hardware or professional work.

Can I keep my fixed shower head and add a handheld one?

Yes, if the installation uses a compatible diverter or a complete fixed-and-handheld combination kit. Confirm the outlet arrangement, available clearance, diverter instructions, and how the system operates when water is directed to one or both heads.

Do I need thread-seal tape on every connection?

No. Some threaded pipe connections use thread-seal tape, while many hose connections seal with a washer seated inside the nut. Follow the product instructions for each joint instead of applying tape everywhere.

How do I know whether my shower arm is damaged?

Look for heavy corrosion, cracks, flattened threads, severe buildup, or movement where the arm enters the wall. Stop if a new fitting binds, sits crooked, or requires force. A loose arm or a leak at the wall should be inspected professionally.

Does a 59-inch hose mean the shower is ADA compliant?

No. The U.S. Access Board requirements for covered accessible showers and bathtubs include more than hose length. Holder position, controls, reach ranges, clearances, and the complete bathroom layout also matter, so a 59-inch hose alone does not establish ADA compliance.

Can a handheld shower head increase my water pressure?

A shower head does not increase the supply pressure in the home's plumbing. Nozzle and spray-pattern design can change how the available water feels, but that is not the same as raising household pressure.

The compatibility decision

Start with the existing shower, not a universal-fit badge. If the common shower-arm-mounted configuration matches your bathroom, compare reach, spray patterns, maintenance, and included parts before choosing a set. If anything is loose, damaged, concealed, or uncertain, pause before purchasing and have the connection identified.

How this guide was checked

The LiberaQuar editorial team researched English-language compatibility questions and checked load-bearing statements against current federal regulations, EPA guidance, U.S. Access Board requirements, and model-specific installation documentation. Commercial manufacturer pages were kept in the internal research packet rather than linked in customer-facing copy. S-1 details were checked against the current LiberaQuar product marketing record. This guide does not rely on universal-thread assumptions, S-1 pressure testing, certification claims, quantified filtration results, medical evidence, or customer testimonials.
