Does a Shower Filter Affect Water Pressure or Flow?
Yes, a shower filter can reduce the water flow reaching the showerhead. Water has to pass through a housing and filter media, and that added resistance can create a pressure drop across the cartridge. The change may be hard to notice in a well-matched setup. It can become obvious when the cartridge loads with sediment, the water path is narrow, or another restriction is already present.
A filter does not raise the home's upstream supply pressure. It can still produce a spray that feels focused if the showerhead uses smaller outlets or a tighter pattern. That is spray design, not proof that household pressure increased.
Key takeaways
- Pressure, flow rate, and spray feel are different. Pressure is a driving condition, flow is water volume per time, and spray feel also depends on outlet design and coverage.
- Every added component creates some resistance. Whether the change matters depends on the filter, showerhead, hose, supply, and cartridge condition.
- A sudden decline is a troubleshooting signal. Check the cartridge, inlet screen, hose, valves, nozzles, and installation before blaming the home's water pressure.
- Product ratings need test conditions. A gallons-per-minute figure without the test pressure and exact model is incomplete.
- LiberaQuar does not claim that S-1 raises water pressure. No S-1 pressure or flow percentage is stated here.

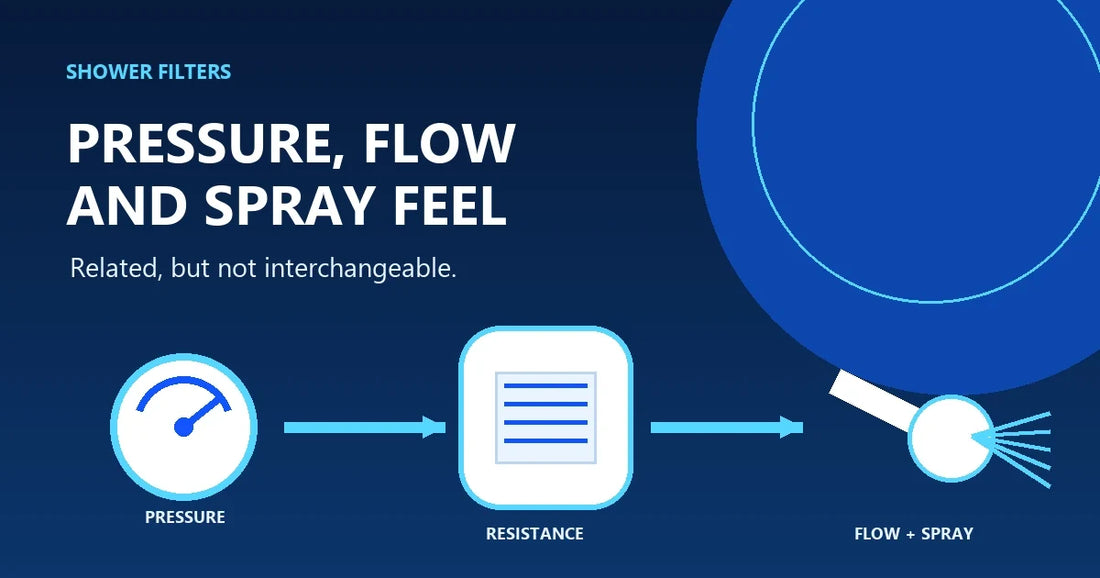

Pressure, flow rate, and spray feel are not the same
These three terms often get collapsed into “water pressure,” but they answer different questions.
| Term | What it means at the shower | Common unit | What can change it |
|---|---|---|---|
| Supply pressure | The force available upstream of the fixture | psi | Utility or well system, elevation, regulator, piping, other fixtures in use |
| Flow rate | The volume delivered over time | gpm or L/min | Supply pressure, valves, pipe and hose size, restrictions, cartridge, showerhead |
| Spray feel | How the water strikes and covers the body | No single household unit | Flow, nozzle size, spray pattern, outlet count, coverage, droplet behavior |
The distinction appears in the EPA WaterSense showerhead criteria. EPA limits labeled showerheads to no more than 2.0 gallons per minute, but it also evaluates spray force, spray coverage, and pressure compensation. A lower-flow showerhead can still give a satisfactory spray when its outlet design manages the available water well.
Why can a shower filter reduce flow?
A filter creates a path that water must pass through. The housing, cartridge openings, media bed, screens, seals, hose, and showerhead all contribute resistance. Under flowing conditions, some pressure is used to move water through those restrictions. More resistance usually means less flow if the upstream supply stays the same.
Several design details affect the result:
- the cartridge's open area and rated flow;
- the amount, grade, and packing of its media;
- internal screens and passage dimensions;
- the hose diameter and whether it is kinked;
- the showerhead's flow control and spray mode;
- the home's pressure while other fixtures are running.
Cartridge condition matters too. Physical media can collect sediment and rust. As open pathways become blocked, resistance can rise. Chemical media may reach the end of its treatment capacity without a dramatic flow change, so a normal-feeling spray does not prove that every treatment claim still performs. Flow and treatment life are separate questions.
What do showerhead flow standards tell you?
U.S. federal rules set a maximum, not a guaranteed household result. 10 CFR 430.32(p) limits covered showerheads to 2.5 gallons per minute when measured at a flowing pressure of 80 psig. WaterSense labeled showerheads use no more than 2.0 gpm and must also meet EPA performance criteria.
Those numbers help compare regulated showerhead performance under defined conditions. They do not mean every shower delivers 2.0 or 2.5 gpm. A home may have lower dynamic pressure, a partly closed valve, narrow piping, a long or kinked hose, mineral buildup, a loaded cartridge, or several fixtures drawing water at once.
They also do not quantify the effect of a separate filter. To judge that, look for an exact-model flow rating at a stated pressure, and ideally a pressure-drop curve or test results for both a new and used cartridge.
Is a small change normal, or is something wrong?
A small, stable difference after adding a filter can be the result of added resistance. A large, sudden, or worsening drop deserves a check. The pattern is often more useful than the sensation alone.
| What you notice | More likely place to check first |
|---|---|
| Every fixture is weak | Home supply, regulator, well equipment, main valve, or concurrent water use |
| Only the shower is weak | Shower valve, hose, inlet screen, cartridge, showerhead, or nozzles |
| Flow fell right after installation | Part orientation, shipping cap, gasket position, debris, kink, or partly closed valve |
| Flow declined over weeks | Cartridge loading, inlet-screen debris, or mineral buildup at the spray face |
| One spray mode feels weak | Selector alignment or mode-specific outlet buildup |
| Flow changes when another fixture runs | Available dynamic pressure and shared piping capacity |
Do not remove a factory-retained flow control to “fix” the shower. Federal rules address how showerhead flow-restricting inserts are retained, and removal can create compliance, comfort, or product-damage problems. Diagnose the restriction instead.
How to diagnose low shower flow after installing a filter
Start with the least invasive checks. Keep the same temperature and control position when comparing results.
- Check whether the problem is shower-only. Run a nearby faucet. If several fixtures changed at the same time, the filter at one shower is unlikely to be the whole cause.
- Confirm valves are open. A stop valve, diverter, or mixing control that is not fully in its intended position can limit flow.
- Inspect the hose. Straighten kinks and confirm the hose is not pinched against a wall or bracket.
- Review the installation instructions. Check cartridge direction, caps, washers, gaskets, and seating. Do not disassemble a pressurized housing.
- Check accessible screens and nozzles. Turn off the water first and follow the manufacturer's cleaning directions. Debris at a small inlet screen can affect the whole spray.
- Consider cartridge age and source water. Visible sediment can load physical media sooner in one home than another. Replace the cartridge on the product's schedule or earlier if its instructions identify low flow as an end-of-life sign.
- Escalate when the cause is upstream. Persistent home-wide low pressure, valve trouble, or uncertain plumbing conditions belong with the utility, building manager, well professional, or licensed plumber.
The handheld showerhead compatibility checklist can help identify connection and fixture constraints. If the parts fit and you are reinstalling a set, use the step-by-step handheld showerhead installation guide for washer, thread, hose, and leak checks.
How can you measure a change at home?
A timed collection can show whether the same shower changed. It is not a certification test, but it is more reliable than memory.
Use a marked container and a stopwatch. Set the shower to the same temperature, valve position, and spray mode each time. Collect all output for a fixed period, such as 15 or 30 seconds. Convert the collected volume to gallons, then multiply by 60 ÷ collection seconds to estimate gallons per minute.
For example, if you collect 0.75 gallon in 30 seconds, the estimated flow is 1.5 gpm. Repeat once to catch a timing or reading error. Compare like with like: before and after a cartridge change, or before and after cleaning an inlet screen.
This remains a household comparison. The federal Appendix S showerhead test method uses controlled equipment, defined procedures, complete collection, calibrated measurements, and temperature normalization. Do not label a bucket result as a compliance test.
How should you compare filtered shower products?
Look past “high pressure” and “no pressure loss” as standalone phrases. Ask for information that identifies the test.
- Rated flow at what pressure? A gpm number needs its test pressure.
- Is the rating for the filter, showerhead, or complete set? Results do not automatically transfer between configurations.
- Was the cartridge new or near the end of its rated life? A clean-cartridge result may not describe later use.
- Does the manufacturer publish a pressure-drop curve? That shows how restriction changes across flow conditions.
- What maintenance affects flow? Check the replacement schedule and cleaning instructions.
- What does a certification cover? NSF/ANSI 177 addresses shower filtration systems and free available chlorine claims for certified models. It should not be treated as a blanket “no pressure drop” label, and certification does not transfer to another product.
Spray demonstrations can show how a pattern looks. They cannot establish household pressure, a universal flow rate, or end-of-life cartridge performance.
What is known about LiberaQuar S-1?
LiberaQuar S-1 is a filtered handheld shower set with five selectable water patterns, a 59-inch hose, and a replaceable four-media cartridge. One cartridge is pre-installed and two replacements are included. The recommended replacement interval is 30 days, while actual service life varies with local water quality and use.
No S-1 pressure-increase percentage, flow-rate result, or pressure-drop claim has been established here. The five spray modes change the water pattern, which can change how the spray feels, but that is not the same as increasing the home's supply pressure.
If you are comparing formats, first decide whether handheld reach and spray choice fit the routine. The handheld versus fixed showerhead guide explains that choice. The complete LiberaQuar S-1 filtered handheld set provides the verified component and care details available for this product.
Frequently asked questions
Does a shower filter lower household water pressure?
It does not change the utility, well, or regulator setting upstream. It can create a pressure drop while water is flowing through the cartridge, which may reduce the flow available at that shower.
Can a shower filter increase water pressure?
No passive filter creates more upstream pressure. A showerhead can make a spray feel more focused by changing outlet size or pattern, but that is not a pressure increase in the plumbing supply.
Why did my shower flow fall after a few weeks?
A cartridge or inlet screen may be loading with sediment, and mineral buildup can restrict the spray face. Check the product's maintenance directions, cartridge schedule, hose, screen, and nozzles before assuming a home-wide pressure problem.
Does a new cartridge restore flow?
It can if the old cartridge was the restriction. It will not fix a kinked hose, closed valve, clogged showerhead, weak home supply, or an undersized water path elsewhere.
Does NSF/ANSI 177 mean a shower filter will not reduce flow?
No. The standard concerns shower filtration systems and certified free available chlorine claims, along with construction and durability requirements. Check the exact product listing and its hydraulic ratings rather than treating the standard as a no-pressure-loss guarantee.
Diagnose the water path, not the marketing phrase
A shower filter can affect flow because it adds resistance. That does not tell you how large the change will be in one bathroom. Supply conditions, cartridge design, installation, aging, hose geometry, showerhead flow control, and spray pattern all matter.
Separate the three questions: Is the home's supply pressure low? Is the measured flow lower? Or does the spray only feel different? That separation turns a vague “pressure problem” into a checkable water path. Browse the Shower Guides for related installation and maintenance help. If an S-1 specification is unclear, use the LiberaQuar contact page rather than relying on an unverified performance claim.
About this guide
The LiberaQuar Editorial Team prepared this guide from current U.S. showerhead rules, EPA WaterSense material, NSF certification scope, formal manufacturer troubleshooting, and LiberaQuar product records. It explains pressure, flow, spray feel, and maintenance boundaries. It does not replace an exact-model laboratory test, utility diagnosis, building maintenance review, or licensed plumber.
